iBeam smart 高性能二极管激光器 单模半导体激光器
产品描述

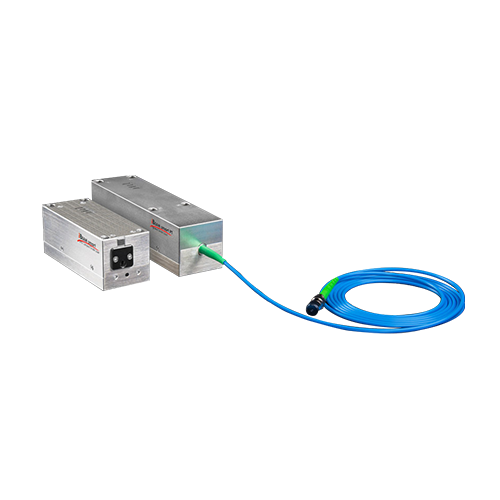

尾纤输出高性能二极管激光器。
产品整体参数
产品技术性说明：
高输出功率，加上出色的功率以及光束指向稳定性，该系列产品正在成为紧凑性二极管激光器的市场标杆。它基于微处理器的电子设备灵活便于调节，这使得系统集成易如反掌。系统配备专有的FINE, SKILL 以及 AUTOPULSE功能，以帮助解决用户应用中的常见问题。
特点：单模，TEM00 输出，波长范围375nm至1064nm；
配备FINE 和 SKILL专有功能，消除信号噪音和散斑现象；
CW或模拟，数字和混合调制操作；
模拟及数字调制，频率高达250MHz；
真正的一体机解决方案，无需额外控制机箱。
产品列表
|
iBeam smart-S |
375-S |
395-S |
405-S |
420-S |
445-S |
460-S |
473-S |
488-S |
505-S |
515-S |
633-S |
640-S |
660-S |
685-S |
785-S |
850-S |
|
Optical Specifications |
||||||||||||||||
|
Wavelength(1) (nm) |
375 |
395 |
405 |
420 |
445 |
460 |
473 |
488 |
505 |
515 |
633 |
640 |
660 |
685 |
785 |
850 |
|
Wavelength range (nm) |
± 5 |
± 5 |
± 4 |
± 5 |
± 5 |
+0/-10 |
± 5 |
± 4 |
± 2 |
± 5 |
± 3 |
± 5 |
± 3 |
± 5 |
± 5 |
± 5 |
|
Output power (mW) |
70 |
120 |
100/ 150/300 |
120 |
100 |
100 |
100/300 |
100/200 |
80 |
100/150 |
100 |
150/200 |
130 |
50 |
125/250 |
130 |
|
Min. fiber coupled output power (mW) |
45 |
75 |
100/200 |
75 |
65 |
65 |
65/200 |
65/130 |
50 |
65/100 |
65 |
100/130 |
90 |
30 |
80/160 |
80 |
|
Power stability |
< 0.5 % (drift over 48 h @ room temperature ± 5 °C) |
|||||||||||||||
|
RMS noise |
< 0.2 % (10 Hz - 10 MHz) |
|||||||||||||||
|
Beam diameter (typ.@1/e2) (mm) |
1.3 |
1.2 |
1.2 |
1.2 |
1.3 |
1.1 |
1.3 |
1.3 |
1.1 |
1.3 |
1 |
1.1 |
1.2 |
1.2 |
1.4/0.8 |
0.8 |
|
Beam shape, ellipticity |
circular, < 10% |
|||||||||||||||
|
Typ. divergence (mrad) |
< 0.6 |
< 0.6 |
< 0.6 |
< 0.6 |
< 0.6 |
< 0.6 |
< 0.7 |
< 0.7 |
< 0.8 |
< 0.7 |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 / 1.6 |
< 1.7 |
|
M2 |
< 1.2 |
|||||||||||||||
|
Spatial Mode |
TEM00 |
|||||||||||||||
|
Pointing stability |
< 5 µrad / K |
|||||||||||||||
|
Static alignment(2) |
± 0.2 mm (xy), ± 0.5 mrad (angular) |
|||||||||||||||
|
Polarization |
Linear, Orientation: vertical (± 3°), Ratio > 100:1 (typ.) |
|||||||||||||||
|
Electronic Specifications |
||||||||||||||||
|
Analog Modulation |
||||||||||||||||
|
Max. modulation frequency |
1 MHz |
|||||||||||||||
|
Analog modulation extinction ratio |
106 |
|||||||||||||||
|
Digital Modulation (option) |
||||||||||||||||
|
Supported signal levels |
TTL |
|||||||||||||||
|
Max. modulation frequency |
250 MHz (100 MHz with complete off) |
|||||||||||||||
|
Rise / fall time |
< 1.5 ns (10 % - 90 %) |
|||||||||||||||
|
Modulation extinction ratio |
> 1000 : 1 (¥ with complete off)(2) |
|||||||||||||||
|
Electronic Shutter |
||||||||||||||||
|
Rise / fall time |
40 / 10 µs |
|||||||||||||||
|
Extinction ratio |
¥ (complete off)(2) |
|||||||||||||||
|
General and Environmental Specifications |
||||||||||||||||
|
Qualification |
CE marked, Class IIIb qualification, Level 4 ESD protection |
|||||||||||||||
|
PC interface |
RS 232, £ 115.200 baud |
|||||||||||||||
|
DC input |
12 V DC, 2A |
|||||||||||||||
|
Power consumption |
< 18 W (typ. < 6 W) |
|||||||||||||||
|
Heat dissipation |
< 12 W (baseplate @ 50 °C) |
|||||||||||||||
|
Warm-up time |
< 5 min |
|||||||||||||||
|
Temperature range |
15 - 40 °C (operation), -10 - 60 °C (storage) |
|||||||||||||||
|
Relative humidity |
< 90 % (non-condensing) |
|||||||||||||||
|
Dimensions |
40 x 40 x 100 mm3 (H x W x D) |
|||||||||||||||
|
Weight laser head |
< 250 g |
|||||||||||||||
|
(1)Other wavelengths on request. (2)Static alignment tolerances are relative to reference holes in baseplate. (3)Except for 488, 505 and 515 nm. Please inquire. |
||||||||||||||||
