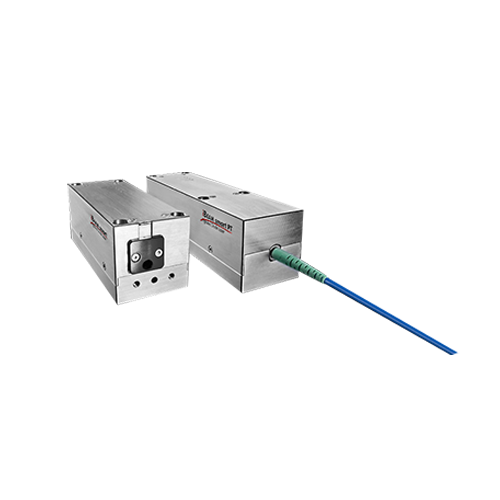

iBeam smart PT 单模半导体激光器 高性能二极管激光器
产品描述
尾纤输出高性能二极管激光器。
产品整体参数
特点：COOLDC: 超稳定光纤耦合；
FINE和SKILL消除噪音和斑点；
CW或模拟，数字和混合调制操作；
高达1 MHz的模拟调制和高达250 MHz的数字调制
真正的一站式解决方案，无需控制箱。
产品技术性说明：
该系列光纤耦合二极管激光器采用TOPTICA独创的COOLDC技术，保证即使在剧烈环境条件变化下仍能保持稳定输出功率，并确保拆箱即可使用的便捷度。该技术完全解除了手动校准的必要性。其电子器件基于微处理器，灵活集成性强，这使得iBeam smart PT系统集成易如反掌。其辅助功能如FINE, SKILL 以及AUTOPULSE等可帮助解决您应用中的常见问题。
产品列表
|
iBeam smart PT |
405 |
445 |
488 |
515 |
640 |
660 |
785 |
|
Optical Specifications |
|||||||
|
Wavelength(1) (nm) |
405 |
445 |
488 |
515 |
640 |
660 |
785 |
|
Wavelength range (nm) |
± 4 |
± 5 |
± 4 |
± 5 |
± 5 |
± 3 |
± 5 |
|
Fiber coupled output power (mW) |
60 / 120 |
50 |
50 / 100 |
50 |
80 |
75 |
70 |
|
Power stability |
± 2 % (drift over 48 h @ room temperature ± 2 °C) |
||||||
|
RMS noise |
≤2 % (10 Hz - 10 MHz) |
||||||
|
Beam shape, ellipticity |
circular, < 10% |
||||||
|
M2 |
< 1.1 |
||||||
|
Polarization ration (typ.) |
> 100 : 1, linear |
||||||
|
Polarization orientation tolerance |
± 3° |
||||||
|
Fiber Specifications |
|||||||
|
Fiber output connector |
FC / AFC (8° angled) standard, others like FC / PC, FC / APC or SC on request |
||||||
|
Fiber cable length (typ.) |
2 m |
||||||
|
Fiber cable type |
3 mm Kevlar reinforced PVC |
||||||
|
Fiber minimum bend radius |
40 mm |
||||||
|
Fiber type |
single-mode, polarization maintaining |
||||||
|
Fiber numerical aperture (5 %) (typ.) |
0.06 |
0.06 |
0.06 |
0.09 |
0.11 |
0.11 |
0.12 |
|
Mode field diameter |
3.0 µm |
3.0 µm |
3.5 µm |
4.2 µm |
4.2 µm |
4.2 µm |
4.5 µm |
|
Electronic Specifications |
|||||||
|
Analog Modulation |
|||||||
|
Maximum analog modulation frequency |
1 MHz |
||||||
|
Analog modulation extinction ratio |
106 |
||||||
|
Digital Modulation (option) |
|||||||
|
Supported digital signal levels |
TTL / TTL complete off |
||||||
|
Maximum digital modulation frequency |
250 / 100 MHz |
||||||
|
Rise / fall time |
< 1.5 ns (10 % - 90 %) |
||||||
|
Digital modulation extinction ratio |
> 1000 : 1 /∞ (with complete off)(2) |
||||||
|
Electronic Shutter |
|||||||
|
Rise / fall time |
40 / 10 µs |
||||||
|
Extinction ratio |
∞ (complete off)(2) |
||||||
|
General and Environmental Specifications |
|||||||
|
Qualification |
CE marked, Class IIIb qualification, Level 4 ESD protection, RoHS compliant |
||||||
|
PC interface |
RS 232, ≤ 115.200 baud |
||||||
|
DC input requirements |
12 V DC, < 2 A |
||||||
|
Power consumption |
< 18 W (typ. < 6 W) |
||||||
|
Heat dissipation |
< 12 W (baseplate @ 50 °C) |
||||||
|
Warm-up time |
< 5 min |
||||||
|
Operating temperature range |
15-40 °C |
||||||
|
Storage temperature range |
-10-60 °C |
||||||
|
Operating relative humidity |
< 90 % (non-condensing) |
||||||
|
Dimensions laser head |
40 x 40 x 145 mm3 (H x W x D) |
||||||
|
Dimensions laser head with fiber minimum bend radius |
40 x 40 x 195 mm3 (H x W x D) |
||||||
|
Weight laser head |
< 360 g |
||||||
|
(1)Other wavelengths on request. (2)Except for 488 and 515 nm. Please inquire. |
|||||||
