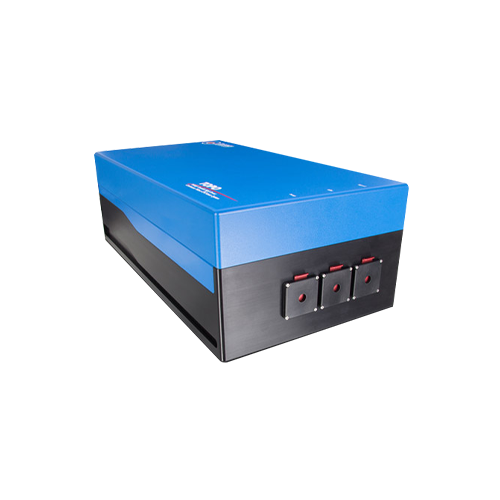

TOPO 广泛可调高功率连续波OPO激光系统 半导体激光器
产品描述
广泛可调高功率连续波OPO激光系统
产品整体参数
特点：1.45 - 4.0 µm (2500 - 6900 cm-1)
窄线宽: 2 MHz (1·10-4 cm-1)
全自动电动调频
300 GHz (10 cm-1) 无跳模可调范围
方便使用的全数字 DLC pro 控制模块
产品技术性说明：
红外光谱从未如此简单。功能强大的TOPO提供广泛可调性，窄线宽以及方便的全自动数字控制。无需更换模块，也无需手动调整。易用性和可靠的性能使这款连续波OPO系统成为红外光谱和量子光学领域富有挑战性应用的理想选择。
产品列表
|
DLC TOPO |
Signal |
Idler |
|
|
Coarse tuning range* |
1.45 - 2.07 µm |
2.19 - 4.00 µm |
2500 - 4570 cm-1 (idler), 4830 - 6900 cm-1 (signal) |
|
Output Power** |
2 W |
1 W |
|
|
Linewidth |
< 100 kHz |
2 MHz |
<1x10-4 cm-1 |
|
Mode hop free tuning range*** |
< 1 GHz |
Up to 300 GHz**** |
Up to 10 cm-1 (idler) |
|
Beam Quality Factor M2** |
< 1.2 |
< 1.2 |
|
|
Frequency modulation and lock |
PZT modulation |
PZT modulation, Pump frequency modulation |
|
|
Control interfaces |
DLC pro touchscreen, PC software, Ethernet, USB, analog remote control |
|
|
|
Warm-up time |
30 min. typ. |
||
|
Dimensions seed laser head (H x W x D) |
55 x 130 x 165 mm |
||
|
Dimensions OPO head (H x W x D) |
150 x 240 x 465 mm |
||
|
Dimensions fiber amplifier (H x W x D) |
133 x 482 x 438 mm |
||
|
Dimensions control unit (H x W x D) |
154 x 450 x 348 mm |
||
|
Power consumption |
Typ. < 250 W |
||
|
PC Interface |
Ethernet, USB, analog control |
||
|
Environment temperature |
15 - 30 °C (operating), 0 - 40 °C (storage and transport) |
||
|
Environment humidity |
non-condensing |
||
* Course tuning is established by full automatic crystal shifting and temperature control. No optics exchange necessary
** Specifications valid 1.53 - 2 µm, 2.2 - 3.6 µm
*** Fine tuning is established via pump tuning (idler) and PZT tuning (signal and idler)
**** 30 GHz - 300 GHz, depending on output wavelength
