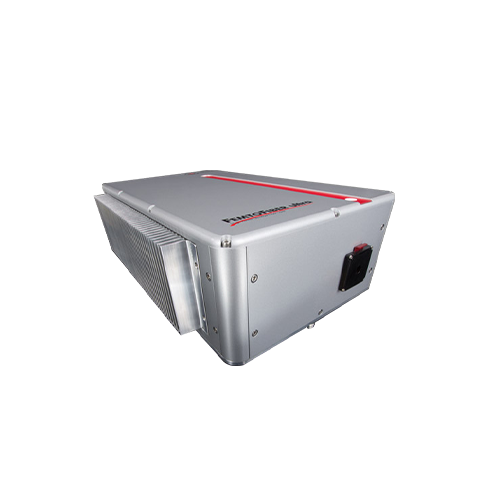

FemtoFiber ultra1050飞秒光纤激光 飞秒激光器
产品描述
1050 nm 飞秒光纤激光，用于量子通信和太赫兹光谱学的飞秒光纤激光器。
产品整体参数
产品技术性说明：
FemtoFiber ultra 1050具有足够高的输出功率，干净的时间脉冲形状和极短的脉冲，具有市场上可提供的相对高峰值功率，并能为双光子显微镜提极佳的图像亮度。
产品列表
|
Center wavelength |
1050 nm |
|
Pulse duration |
< 120 fs (typ.90- 100fs) |
|
Average output power |
>5W or> 10 W |
|
Repetition rate |
80 MHz |
|
Beam shape |
TEM00,M2< 1.2 |
|
Beam divergence |
<1 mrad |
|
Beam size(1/e2) |
Ø 1.2..1.3 mm (typ.) |
|
Linear polarization |
> 95 %, vertical |
|
Output coupling |
Free space |
|
Dispersion Compensation Range |
-20000.. 0 fs2 |
|
Dimensions laser head |
111 x250 x 380 mm3 |
|
Weight laser head |
<15 kg |
|
Dimensions supply unit |
154 x 342 x382 mm3 (incl. stand) (height 3U/HE, width/horizontal pitch 63 HP/TE) |
|
Weight supply unit |
< 10kg |
|
Power supply |
100-240V AC, 50/60 Hz |
|
Power consumption |
<150 W |
|
PC interface |
Ethernet, USB |
|
Environment temperature |
19- 25 °C (operating),0- 40 °C (storage and transport) |
|
Environment humidity |
Non-condensing |
